DESCRIPTION

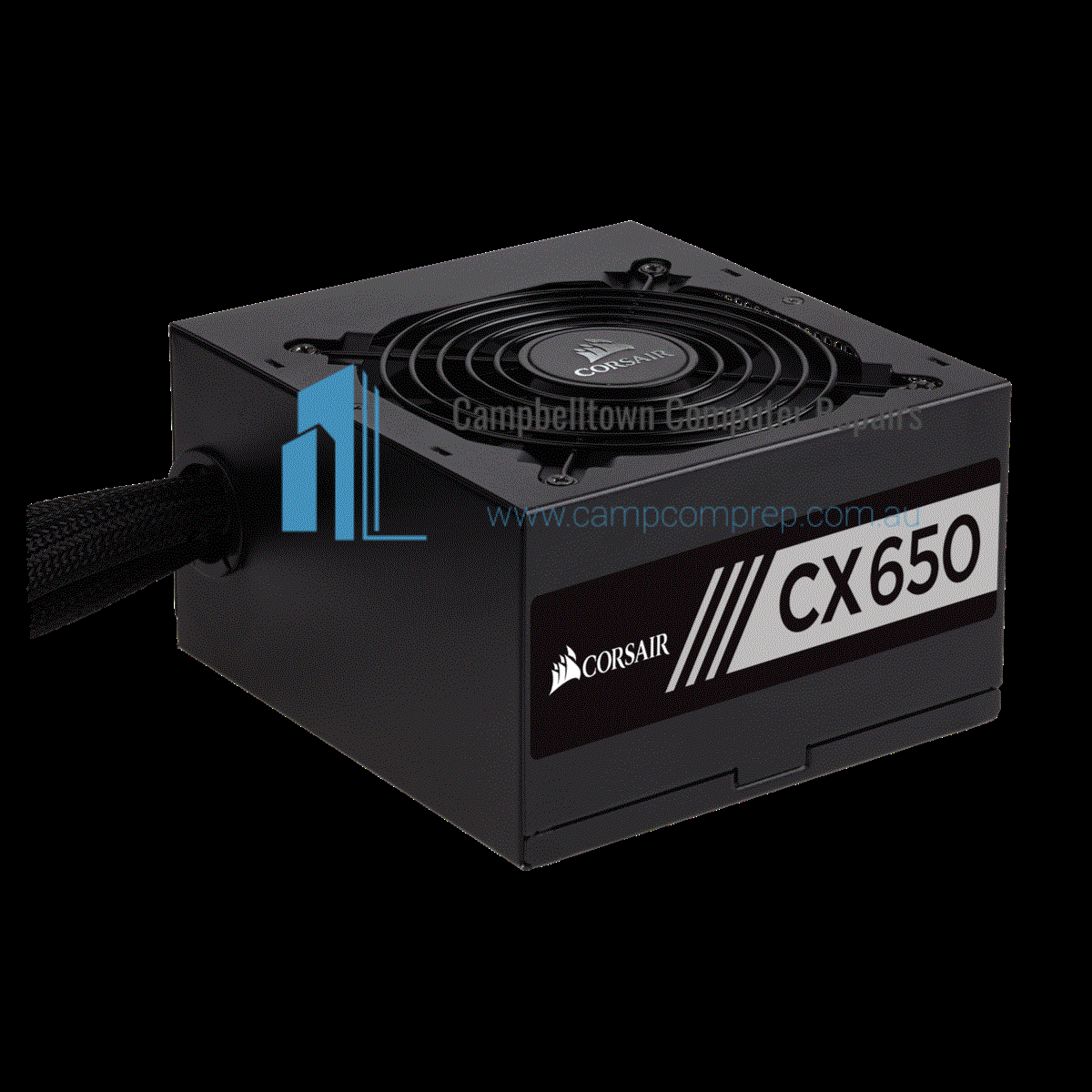

The CX650 power supply provides modern power supply technologies and 80 PLUS Bronze efficiency at a competitive price point. The CX650 offers many upgrades from traditional designs. It is black with black cable sleeving and black connectors, offers a large diameter, thermally controlled 120mm fan, and is nearly silent when running at idle. The LLC resonant topology with DC to DC ensures best in class voltage regulation, improved efficiency at lower loads and complete compatibility with all modern day PCs.

Active PFC with full range AC input (100-240 VAC)

• 120mm thermally controlled rifle bearing fan
• Engineered to meet maximum power output at a 40°C temperature rating.
• Continuous power: 650 Watts
• Fan bearing technology Rifle
• MTBF hours: 100,000 hours
• 80 PLUS Efficiency: Bronze
• Cable Type: Sleeved
• EPS Connector: 1
• EPS12V Version: v2.92
• PCI-E Connector: 2
• SATA Connector: 6
• PATA Connector: 4
• Compatible with the latest ATX12V v2.4 and EPS 2.92 standards and is backward compatible with ATX12V 2.2, 2.31 and older systems.
• Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components.
• Safety and Agency Approvals: FCC, ICES, CE, UL, cUL, RCM, TÜV, CB, CCC, BSMI, EAC, RoHS, WEEE, KC
